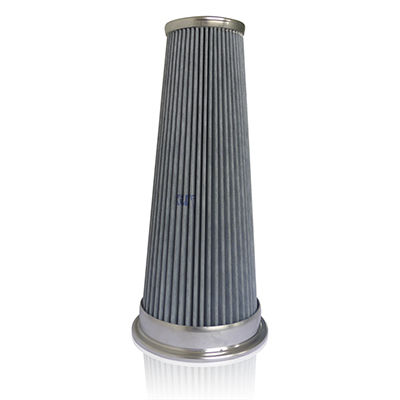

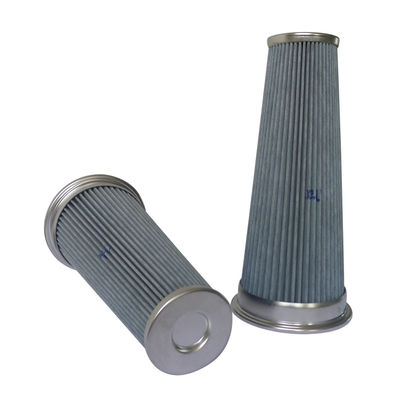

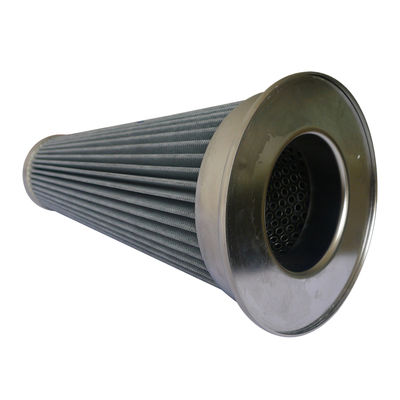

FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size

FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size
FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size

Ampliación de imagen :  FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size

Datos del producto:
Lugar de origen: Jiangsu, China
Nombre de la marca: FILTERK
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: $85-90
Contacto

FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size

descripción
Eficiencia: 99% Porosidad: 0.05 um
Diámetro superior: 80 mm Diámetro inferior: 140 mm
Longitud: 305 mm Peso: 0,84 kilogramos
Material medio: Poliéster + ptfe Grado de filtración: Filtro Hepa
Área de filtrado: 0.5 m2 Temperatura de funcionamiento: ℃ 80
Min Tamaño de partícula: los 0.3μm Estructura: Cartucho de filtro cónico
Tapas finales: hojas de acero inoxidable Núcleo interno: Placa perforada de acero inoxidable
Empaquetadora: Gomaespuma
Resaltar:

Pleated air filter 99% efficiency

,

Cartridge filter element 0.3μm particle size

,

FILTERK 0112311 air filter

FILTERK Model 0112311 Pleated Air Filter for Vacuum Pumps
Product Specifications
Attribute Value
Condition New
Efficiency 99%
Construction Cartridge Filter
Porosity 0.05 um
Dimensions (L×W×H) (Top)80mm × (Bottom)140mm × (L)305mm
Weight 0.84 KG
Warranty 6 Months
Medium Material Polyester + PTFE
Filtration Grade HEPA Filter
Filtering Area 0.5 m²
Service Life ≥6 months
Operating Temperature 80 ℃
Minimum Particle Size 0.3μm
OEM Yes
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining
Warranty of Core Components 1 Year
Core Components INNER CORE, CAPS
Product Features
  • Suitable for extremely fine and free-flowing powders, including toner
  • Designed for vacuum conveyors handling powder & bulk materials
  • Antistatic filter construction
  • High-quality imported polyester and PTFE materials from the USA
  • Stainless steel/electro-galvanized frame and central skeleton
  • Compact filter cartridge design for easy installation
Technical Details
Part Number 0112311
Structure Conical Filter Cartridge
Dimensions Bottom OD126 × Top OD140 × Top ID78 × L305 mm
Filter Material Polyester + PTFE Membrane
Efficiency 99% (Particles larger than 0.3-0.5μm)
End Caps Stainless steel sheet
Inner Core Stainless steel perforated plate
Gasket Foam Rubber
Construction Open/Closed
Ordering Information
MOQ No minimum order quantity. Full container recommended for cost savings:
20GP FCL: 270 pieces
40GP FCL: 558 pieces
40HQ FCL: 654 pieces
Loading Port Shanghai
Lead Time Approximately 7 days for 20GP container
Payment Methods T/T, West Union, PayPal
Shipment Options By sea to nearest port
By air to nearest airport
By express (DHL, UPS, FEDEX, TNT, EMS) to door
Package Carton
Production Capacity Approximately 1000 pieces per week

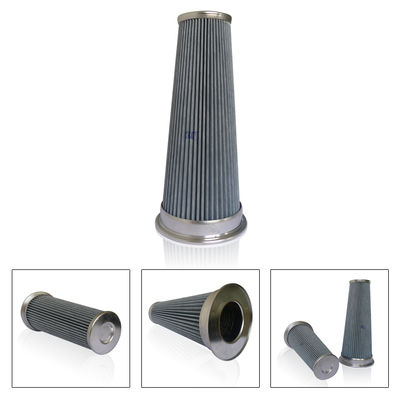

Product Images
FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size 0 FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size 1 FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size 2 FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size 3 FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size 4 FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size 5 FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size 6 FILTERK 0112311 Pleated Air Filter 99% Efficiency 0.3μm Particle Size 7
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 1.5 hours from Shanghai and 40 minutes from Wuxi Dong station by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: How does your factory do regarding quality control?
A: Quality is priority. Filterk people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008 authentication.
We are your best choice for high-quality vacuum pump filters!
