FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency

FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency
FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency

Ampliación de imagen :  FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency

Datos del producto:
Lugar de origen: Jiangsu, China
Nombre de la marca: FILTERK
Pago y Envío Términos:
Cantidad de orden mínima: 10
Precio: $75-85
Contacto

FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency

descripción
Eficiencia: 99% Porosidad: 0.03um
Dimensión: (Arriba) 78 mm*(abajo) 126 mm*(l) 200 mm Peso: 0,88 kg
Material medio: Poliéster + ptfe Grado de filtración: Filtro Hepa
Área de filtrado: 0.5 m2 Vida útil: Meses ≥6
Temperatura de funcionamiento: ℃ 80 Min Tamaño de partícula: los 0.3μm
Estructura: Cartucho de filtro cónico Material de filtro: poliéster + membrana de PTFE
Tapas finales: hojas de acero inoxidable Núcleo interno: Placa perforada de acero inoxidable
Empaquetadora: Gomaespuma
Resaltar:

PTFE pleated cartridge filter

,

0.5 m2 cartridge filter element

,

99% efficiency cartridge filter

FILTERK Replacement Piab 0112310 PTFE Pleated Clean Side Removal Cartridges for Vacuum
Product Overview

High-efficiency PTFE pleated clean side removal cartridges designed for vacuum applications in demanding industrial environments.

Product Specifications
Attribute Value
Condition New
Efficiency 99%
Construction Clean Side Removal Cartridges
Porosity 0.03um
Dimensions (L×W×H) (Top)78mm × (Bottom)126mm × (L)200mm
Weight 0.88 KG
Warranty 6 Months
Medium Material Polyester + PTFE
Filtration Grade HEPA Filter
Filtering Area 0.5 m²
Service Life ≥6 months
Operating Temperature 80 ℃
Minimum Particle Size 0.3μm
OEM Yes
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining
Warranty of Core Components 1 Year
Core Components INNER CORE, CAPS
Key Features
  • Designed for extreme fine and free-flowing powders like toner
  • Ideal for vacuum conveyors handling powder & bulk materials
  • Antistatic filter construction
  • Premium imported polyester and PTFE materials from USA
  • Stainless steel/electro-galvanized frame and central skeleton
  • Compact design for easy installation
Technical Details
Part #: 0112310
Structure: Conical Filter Cartridge
Dimensions: Bottom OD126 × Top OD 140 × Top ID 78 × L200 mm
Filter Material: Polyester + PTFE Membrane
Efficiency: 99% (Particles larger than 0.3-0.5μm)
End Caps: Stainless steel sheet
Inner Core: Stainless steel perforated plate
Gasket: Foam Rubber
Construction: Open/Closed
Ordering Information
MOQ: No minimum order quantity (Full container recommended for cost savings)
Container Capacity: 20GP: 270 pieces | 40GP: 558 pieces | 40HQ: 654 pieces
Loading Port: Shanghai
Lead Time: Approximately 7 days for 20GP container
Payment Methods: T/T, West Union, PayPal
Shipping Options: Sea freight to nearest port | Air freight to nearest airport | Express (DHL, UPS, FedEx, TNT, EMS) to door
Packaging: Carton
Production Capacity: Approximately 1000 pieces per week
Product Images

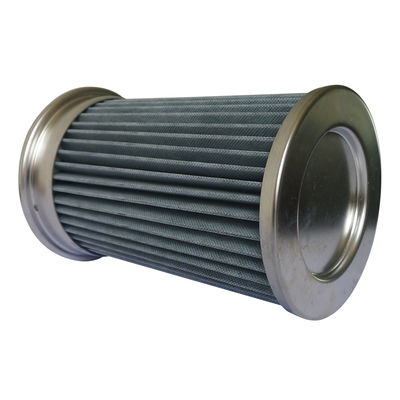

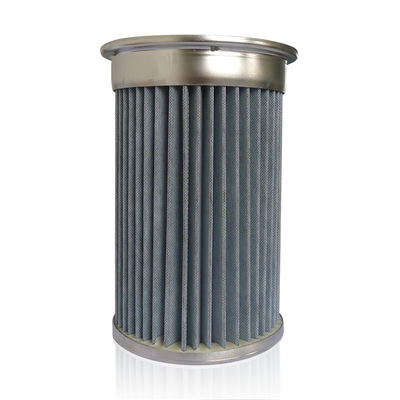

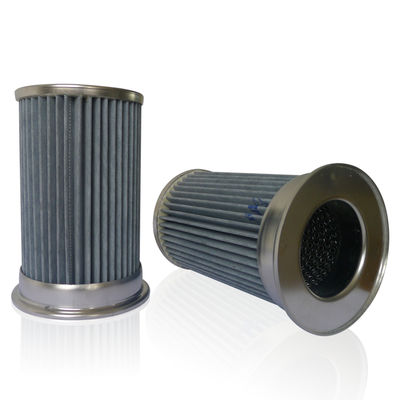

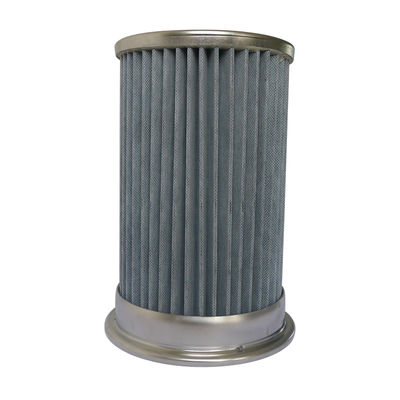

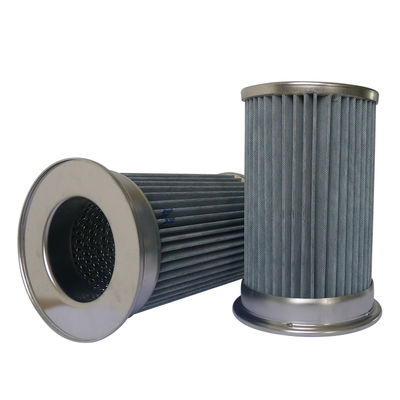

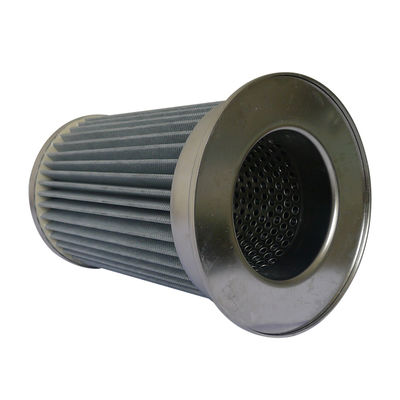

FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency 0
FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency 1
FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency 2
FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency 3
FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency 4
FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency 5
FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency 6
FILTERK Piab 0112310 PTFE Pleated Cartridge Filter 0.5 m2 99% Efficiency 7
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zhangjiagang City, Jiangsu Province, China, about 1.5 hours from Shanghai and 40 minutes from Wuxi Dong station by car. All our clients, from home or abroad, are warmly welcome to visit us!
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: How does your factory do regarding quality control?
A: Quality is priority. Filterk people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008 authentication.

We are your best choice for high-quality vacuum filtration solutions!
